12V Portable Solar Panels

12V Portable Solar Panels

Regular price $149.99 USD
Regular price Sale price $149.99 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.
Color
Ships From

Description

Harness the power of the sun with our 12V Portable Solar Panels. With their lightweight and flexible design, they provide a convenient and eco-friendly solution for powering your devices on-the-go. Perfect for outdoor enthusiasts, campers, and travelers.

Ships from the USA.  Estimated Delivery time is 8 to 12 days

SPECIFICATIONS
  • Number of Panels: >20
  • Flexible Solar Panel: Yes
  • Foldable Solar Panel: No
  • Type: Solar Panel
  • Size: 1050*530*3MM
  • Material: Monocrystalline Silicon
  • Nominal Capacity: 12V
  • Number of Cells: 32
  • Max. Power: 100W
  • is_customized: Yes
  • Certification: CE
  • Certification: RoHS
  • Maximum power(Pmax): 100w
  • Open circuit voltage(Voc): 19.2v
  • Short circuit current(Isc): 6.68A
  • Maximum power voltage(Vmp): 16v
  • Maximum power current(Imp): 6.25A
  • Weight: 1.9kg

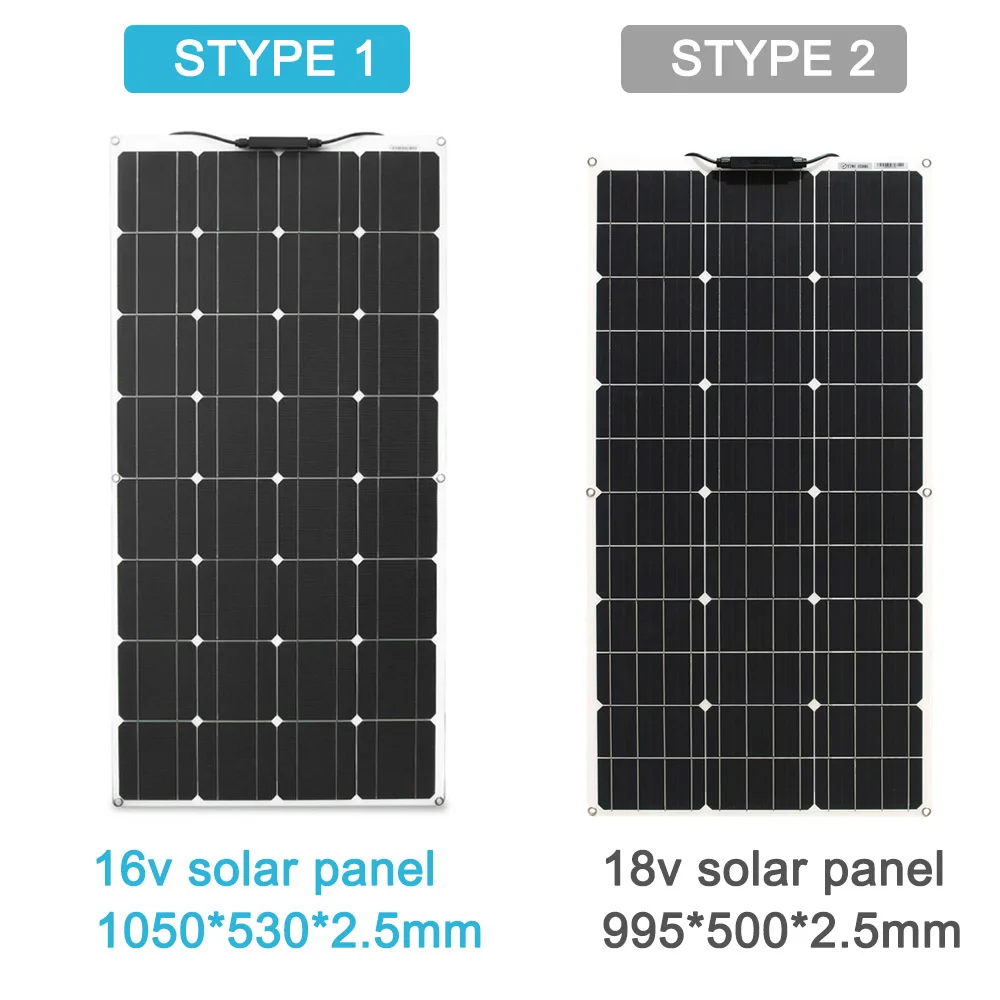

TYPE 1:16V 100W Flexible solar panel

TYPE 2:18V 100W Flexible solar panel

Packing List 100W Solar Panel= 1 pcs 100W flexible solar panel
200W Solar Panel= 2 pcs 100W flexible solar panel
300W Solar Panel= 3 pcs 100W flexible solar panel
400W Solar Panel= 4 pcs 100W flexible solar panel
500W Solar Panel= 5 pcs 100W flexible solar panel
600W Solar Panel= 6 pcs 100W flexible solar panel

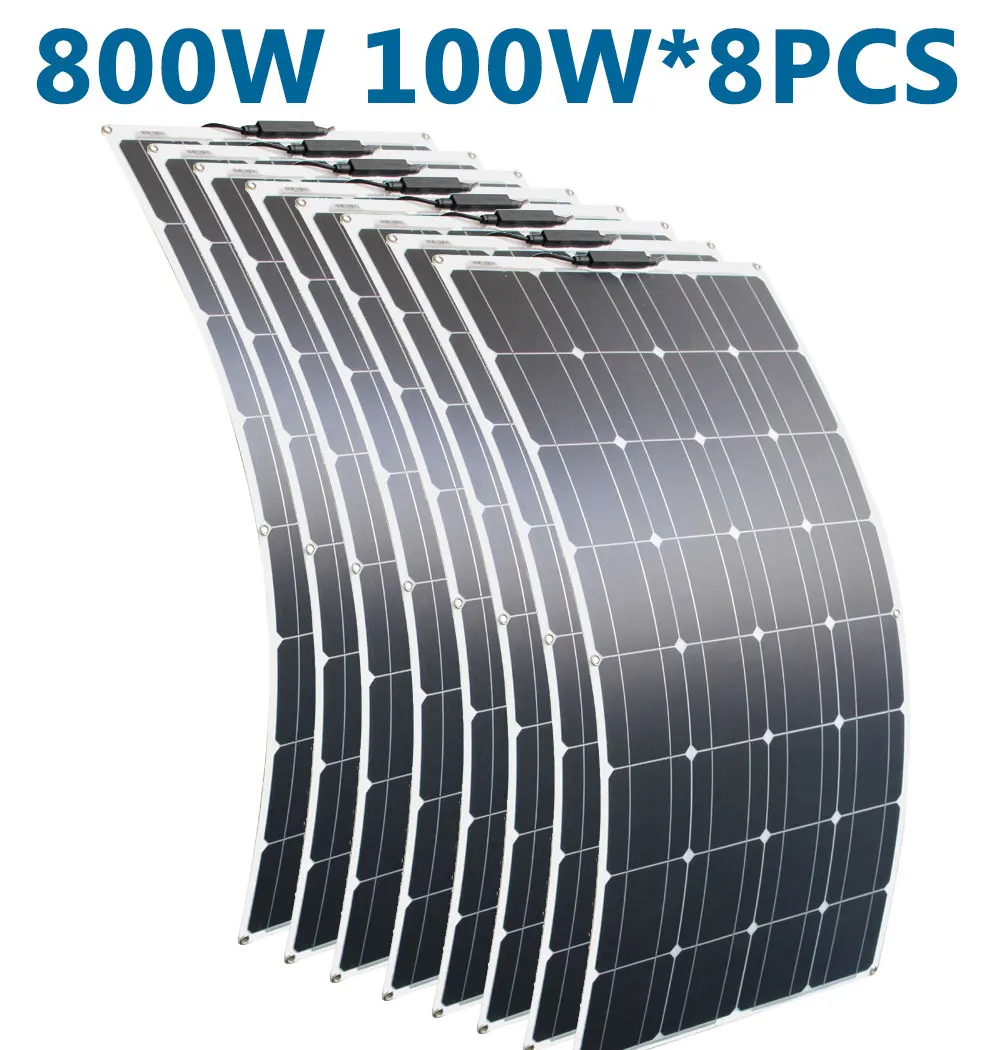

800W Solar Panel= 8 pcs 100W flexible solar panel

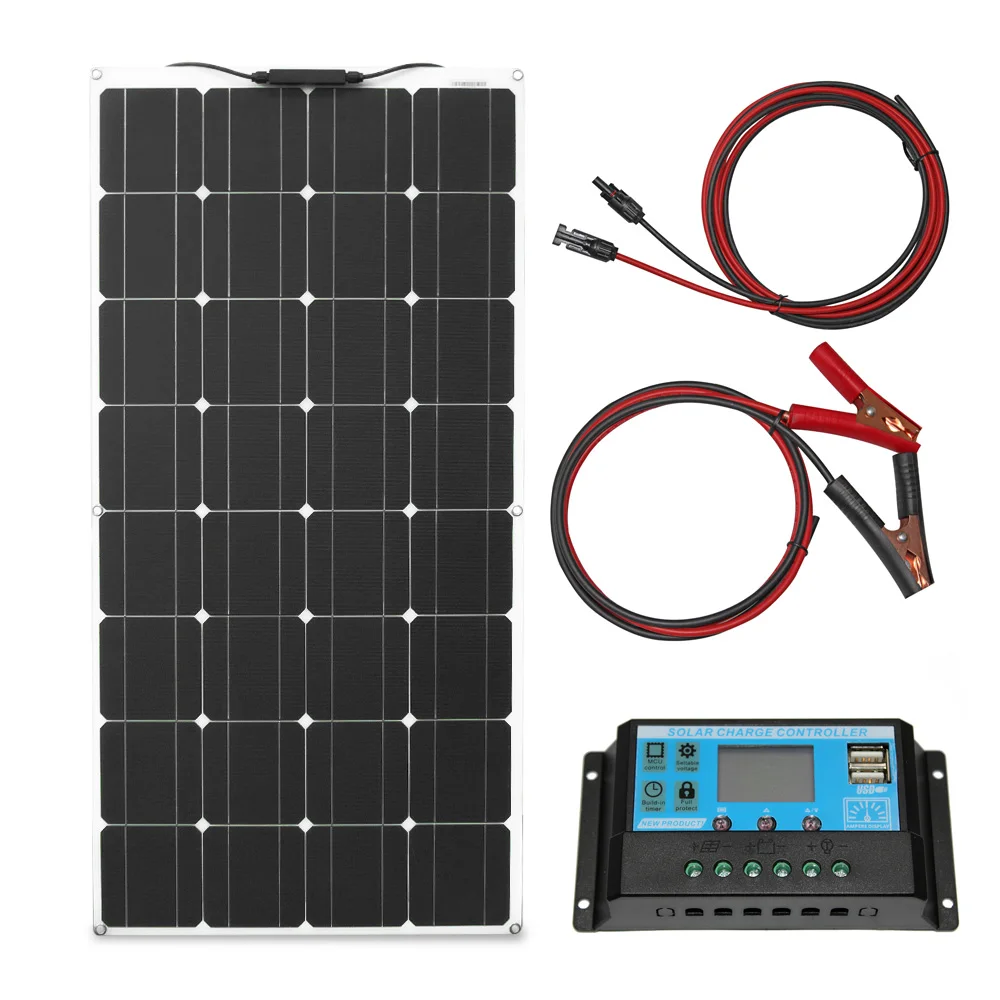

100w solar panel system packing list 1pcs 100w flexible solar panel
1pcs 10A 12V/24V solar panel controller
1set cable with battery clips
1set cable with PV solar connector

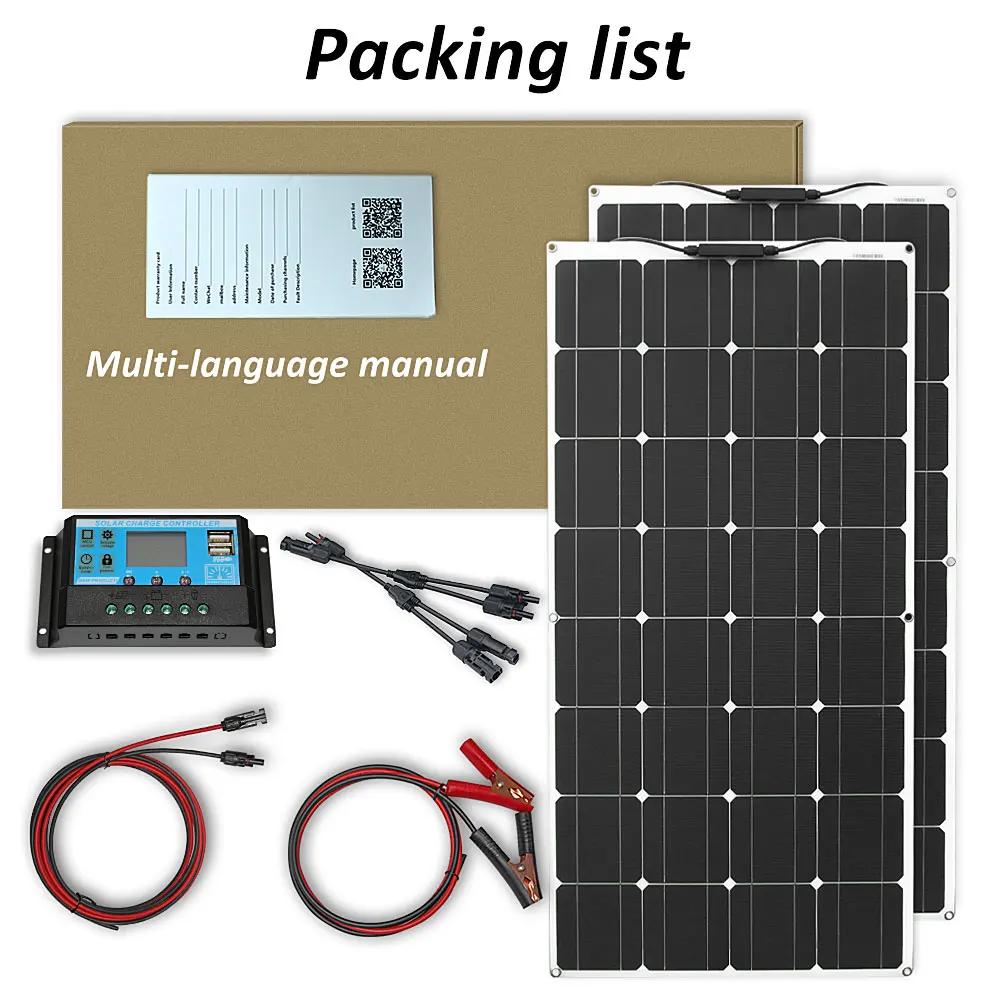

200w solar panel system packing list 2pcs 100w flexible solar panel
1pcs 20A 12V/24V solar panel controller
1set cable with battery clips
1set cable with PV solar connector
1pair 2 in 1 solar adapter

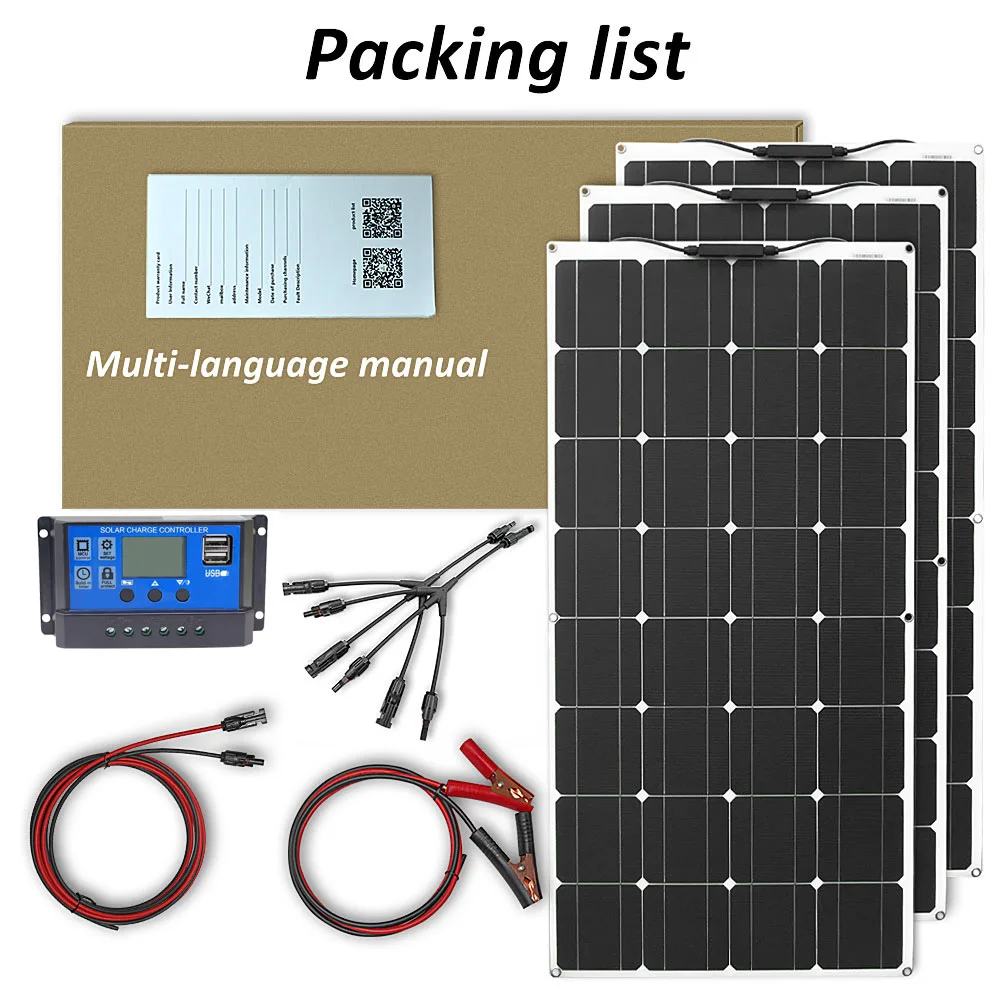

300w solar panel kit packing list 100W 16V solar panel *3
30A 12V/24V solar charger regulator *1
3 meter extend cable *1
1 meter cable with alligator clips *1
3-in-1 PV parallel adapter *1

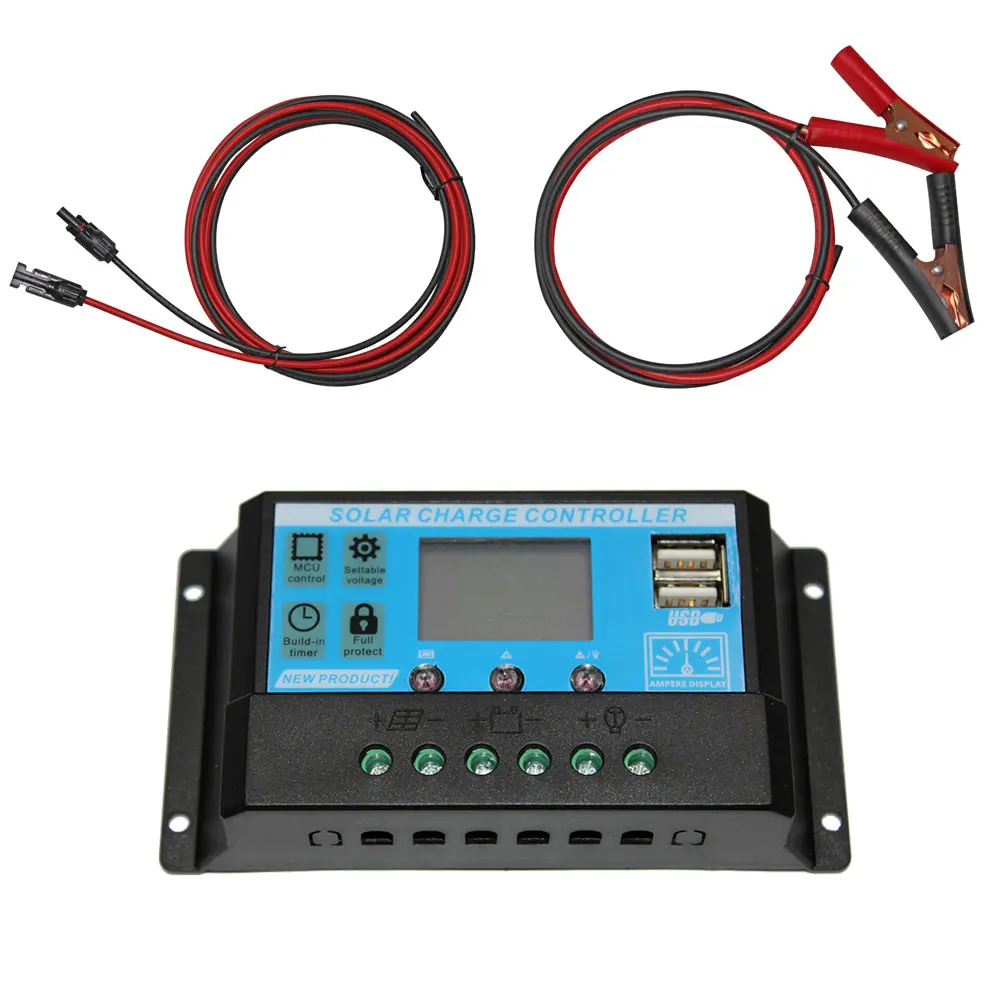

MODEL 10A 20A 30A
Battery Voltage 12V/24V Auto
Charging Current 10A 20A 30A
Discharging Current 10A 10A 10A
Max Solar input 48V(for 24V battery) 24V(for 12V battery)
Equalization 14.4V(Sealed) 14.2V(Gel) 14.6V(Flood)
Float charge 13.7V(defaul,adjustable)
Discharge stop 10.7V(defaul,adjustable)
Discharge reconnect 12.6V(defaul,adjustable)
Charge reconnect 13V
Voltage of open light Solar Panel 8V(Light lights delay)
Voltage of close light Solar Panel 8V(Light off delay)
USB output 5V/3A
Self-consume <10mA
Operating temperature -35°C~+60°C
Size/weight 133.5*70*35mm 165g

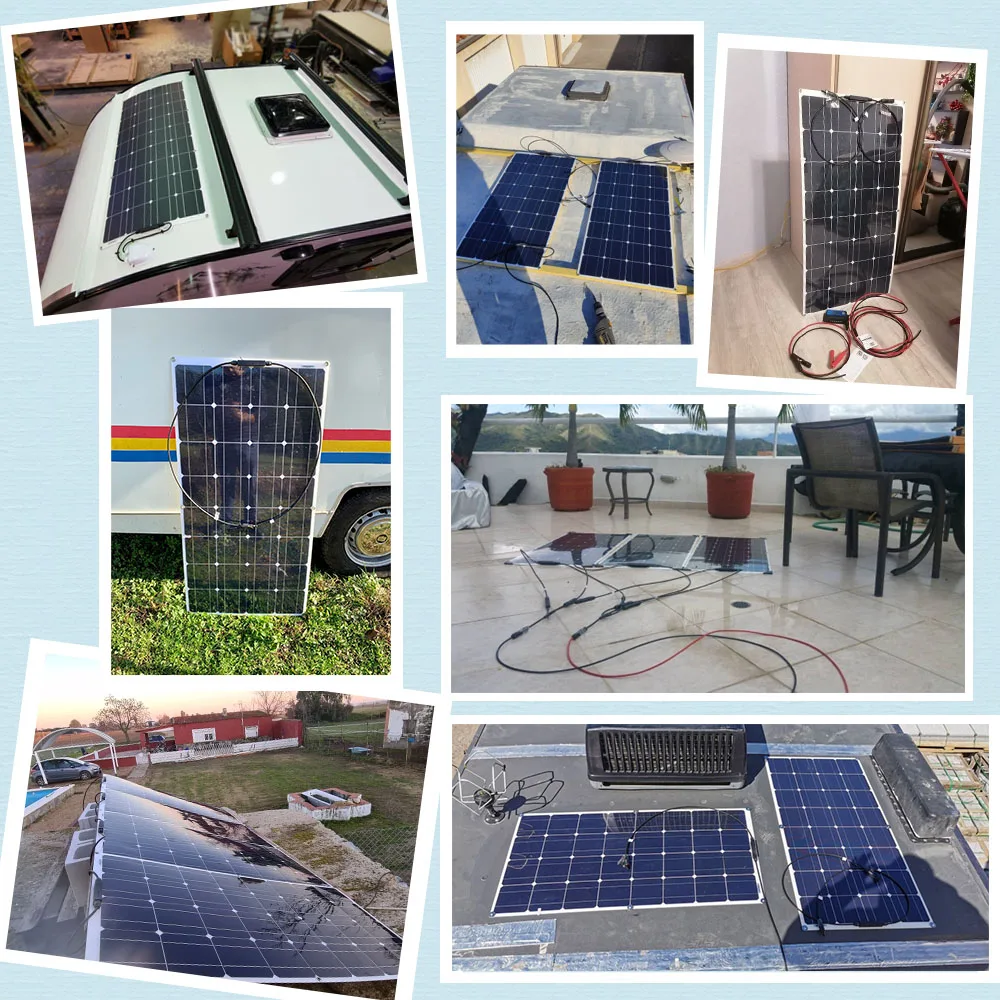

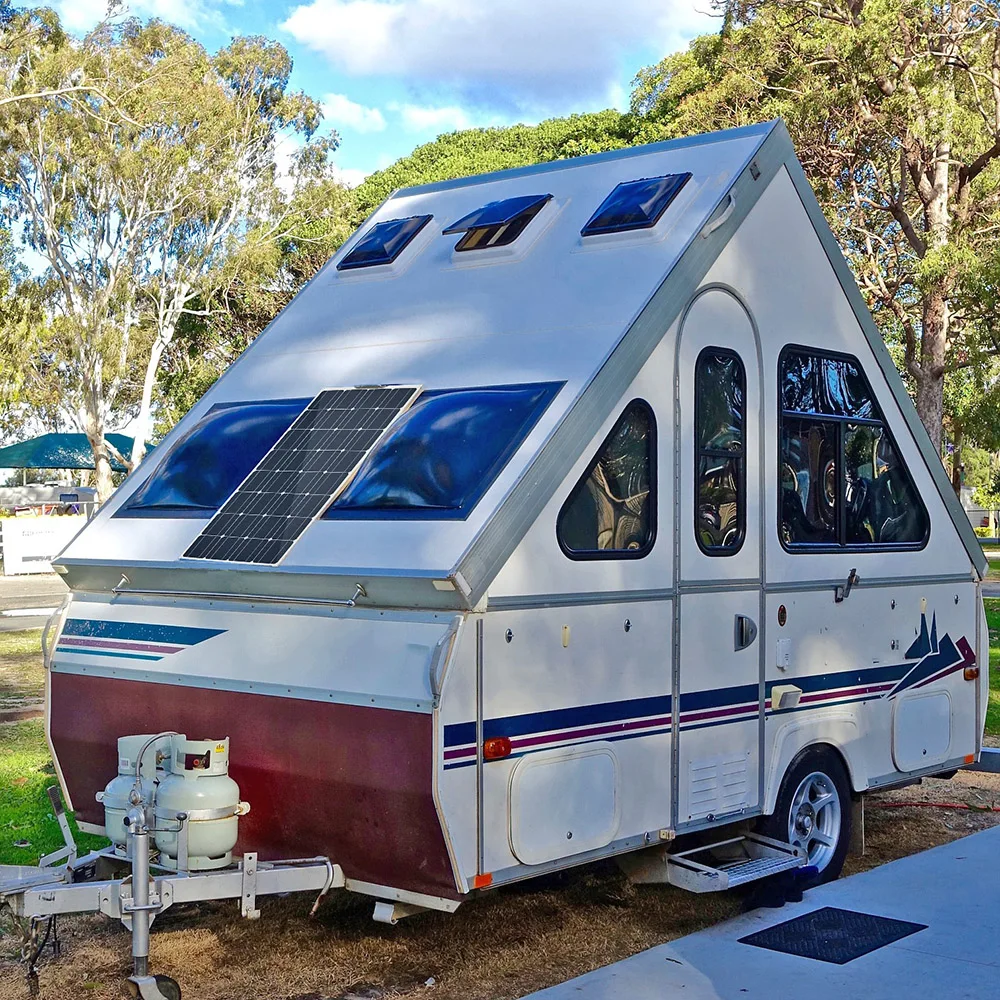

Different with traditional solar panels which are rigid and often enclosed in tempered glass, the 100W Flexible Solar Panel is anything but traditional. The 100W Flexible Solar Panel is thin and capable of flexing up to 30 degrees that can easily be installed on curved surfaces, high efficiency up to 21% with small size for big power output, light weight just 1.9kg(±0.1kg) only a quarter of its traditional 100W glass solar panel. This panel can also be used for various applications, including providing power on a boat, van, golf car, tricycle, tent roof, even though hanged on window to power the lights and other DC applications. The 100W solar panel can charge the 12V or 24V battery or charge the 3.7V, 6V, 9V devices with a regulator。
Advantages High Efficient
High solar cell efficiency: Monocrystalline 21%

Protection

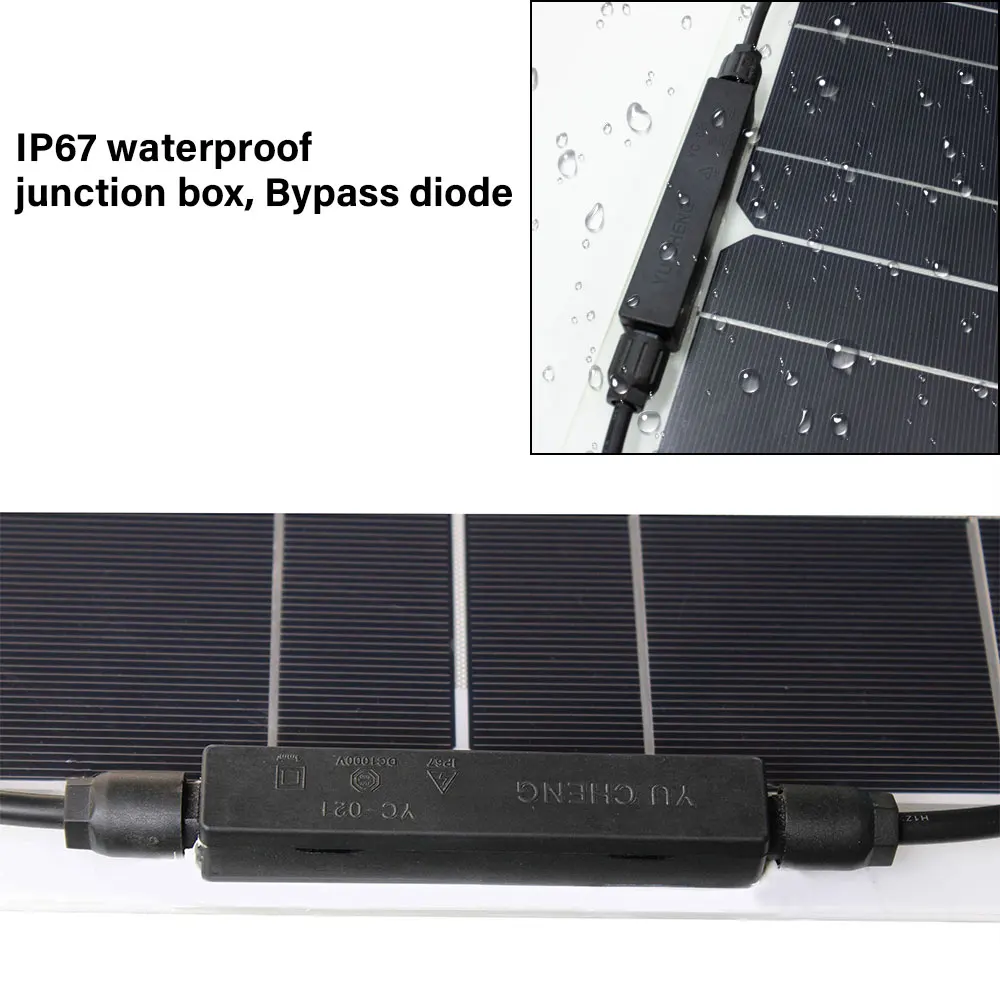

Bypass diodes minimize power drop caused by shade and ensure excellent performance in low-light environments

Extremely Flexible

This panel is capable of meeting a wide range of applications where standard panels can be inconvenient to mount, such as on the curved roof of an airstream

Ultra Lightweight

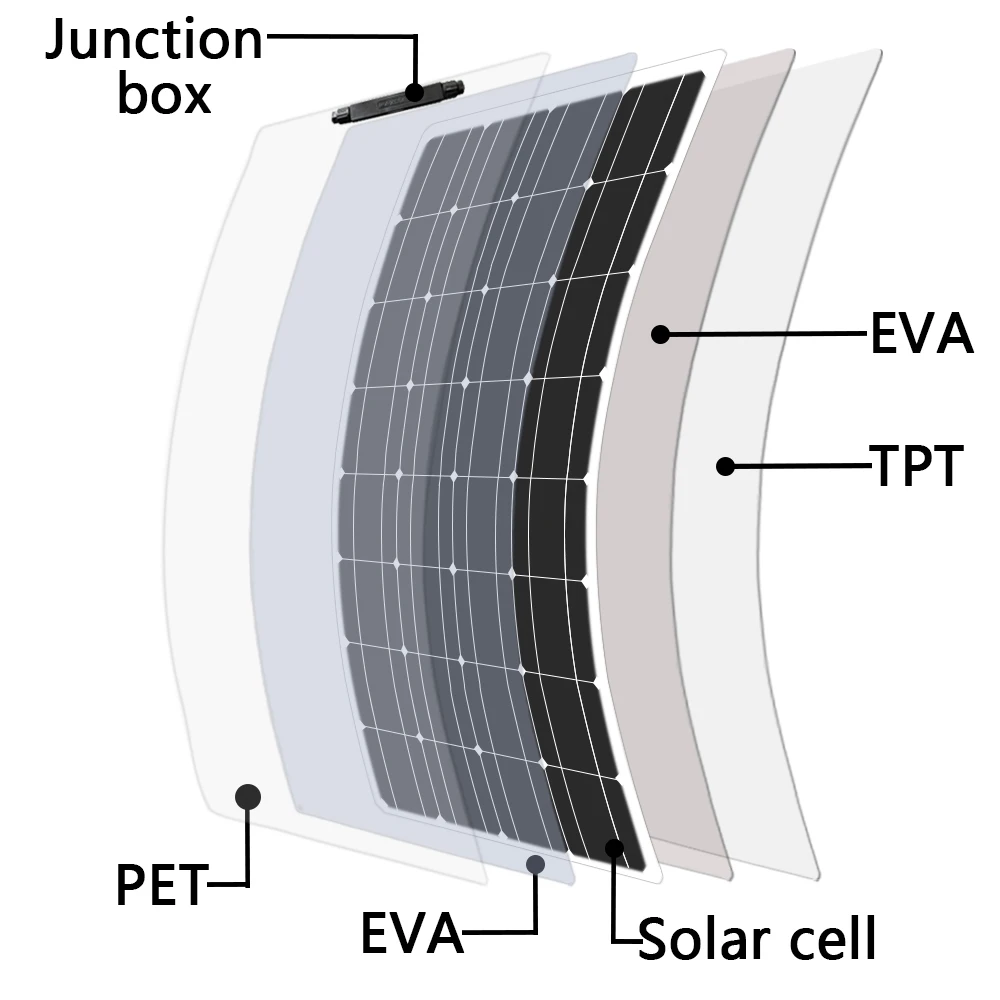

Thanks to advanced polymer materials, this product weighs 70% less than conventional solar panels, making transportation and installation a breeze

Super Thin

Hardly noticeable, the 100W Lightweight Panel laid flat is only a tenth of an inch tall! Approximately 95% thinner than its rigid counterpart, this panel is ideal for a stealthy solar setup

Highly Durable

Rigorously tested, the 100W panel was designed to withstand extreme wind and snow loads

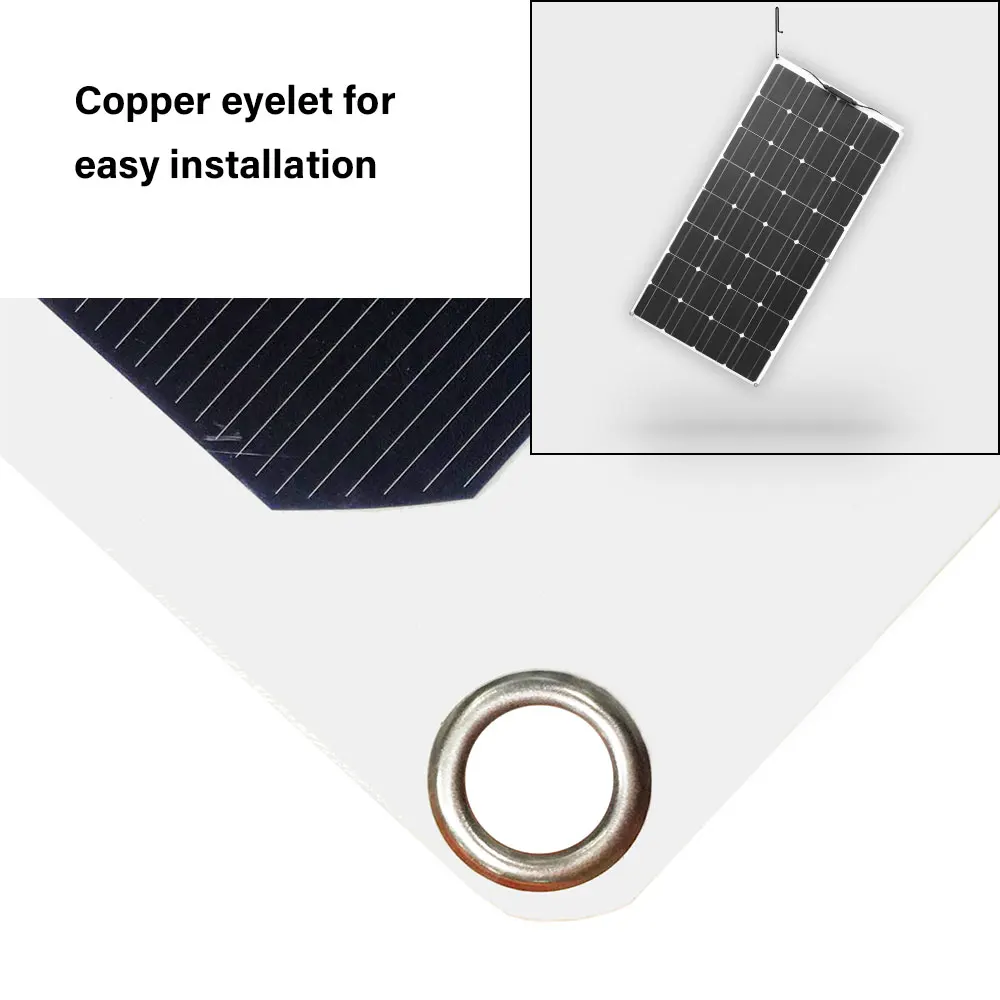

Easy to install: Metal holes in the corners of the product for fixing screws and mounting.

Electrical Characteristics Max Power                                          100W
Max Power voltage                                 16V
Max Power Current                              6.25A
Open Circuit Voltage                            19.2V
Short Circuit Current                            6.68A
Number of cells in Series                  32
Cell size                                                125X125mm
Mechanical Characteristics

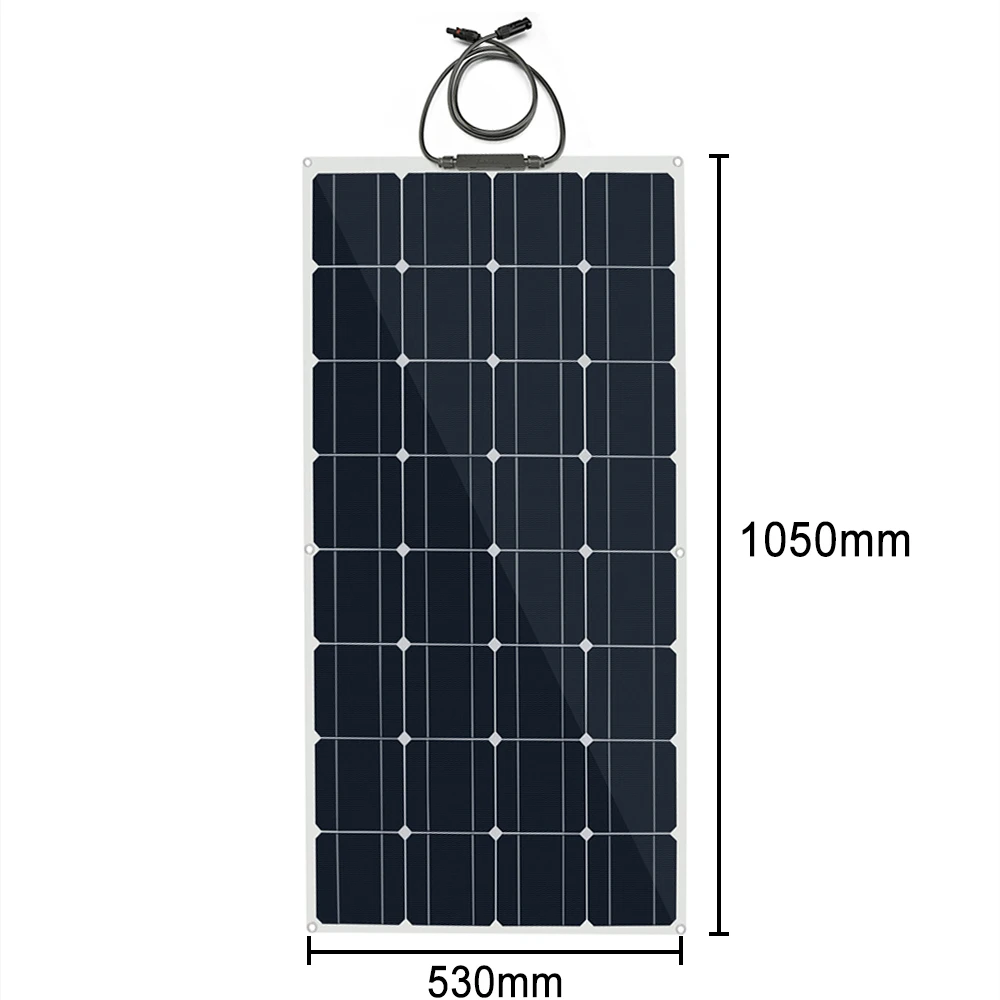

Dimension                                            1050X530X2.5mm
Weight                                            1.9kg(±0.1kg)
Cable                                                0.9 meter 2X2.5mm
Thermal Characteristics
Temperature coefficient of Pmax        -0.38%/℃
Temperature coefficient of Voc       -60.5mV/℃
Temperature coefficient of Isc           2.2mA/℃
NOTC                                                47℃+/-2℃
Operating Temperature                        -20℃ - +65℃
About the parcel send from China   Sometimes the customs will charge the clearance fees.  If you reject the item because of customs clearance, you will have to pay for the shipping cost of the returned item.

When the goods arrive at the destination country, please contact the local logistics service provider for customs clearance and delivery.
